Product Details

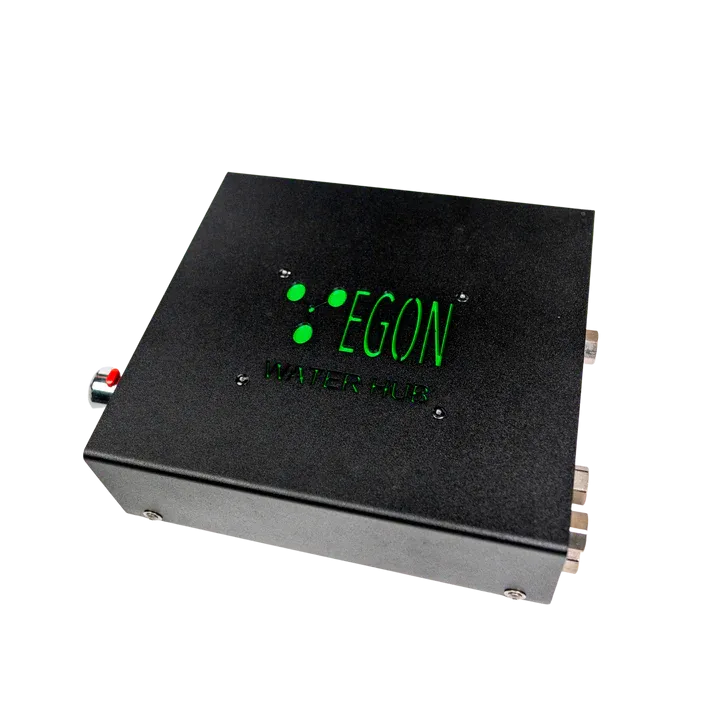

The EGON Water-Hub is the all-in-one, plug-and-play solution for hot and cold-water distribution. It eliminates complex plumbing and specialist labour by centralising multiple inlets and outlets into one compact unit that works with any water heater. Designed for caravans, 4WDs, boats, overlanders, campers, and off-grid homes, it delivers clean, reliable water supply faster and more cost effectively than traditional plumbing setups.

Overview

Features

Fast Installation: Plug-and-play design cuts setup time and removes the need for specialist plumbing skills.
Versatile Water Management: Supports hot and cold supply, clean drinking water, multiple inputs, and safe grey water handling.
Grey Water Safety: Failsafe design prevents contamination from grey water sources.
Smart Temperature Control: Minimises waste as hot water is automatically kept at desired temperature.

What’s Included

1 × EGON Water-Hub unit
2 × QK Series connector sets (1 per pump, each set includes 1 male and 1 female)

What You’ll Need

Plumbing Fittings: Standard 3/8 BSP plumbing fittings (hoses, taps, showerheads, etc.)
Connectors: QK Series 2-Way Connectors (if Electric Connection Kit not purchased)

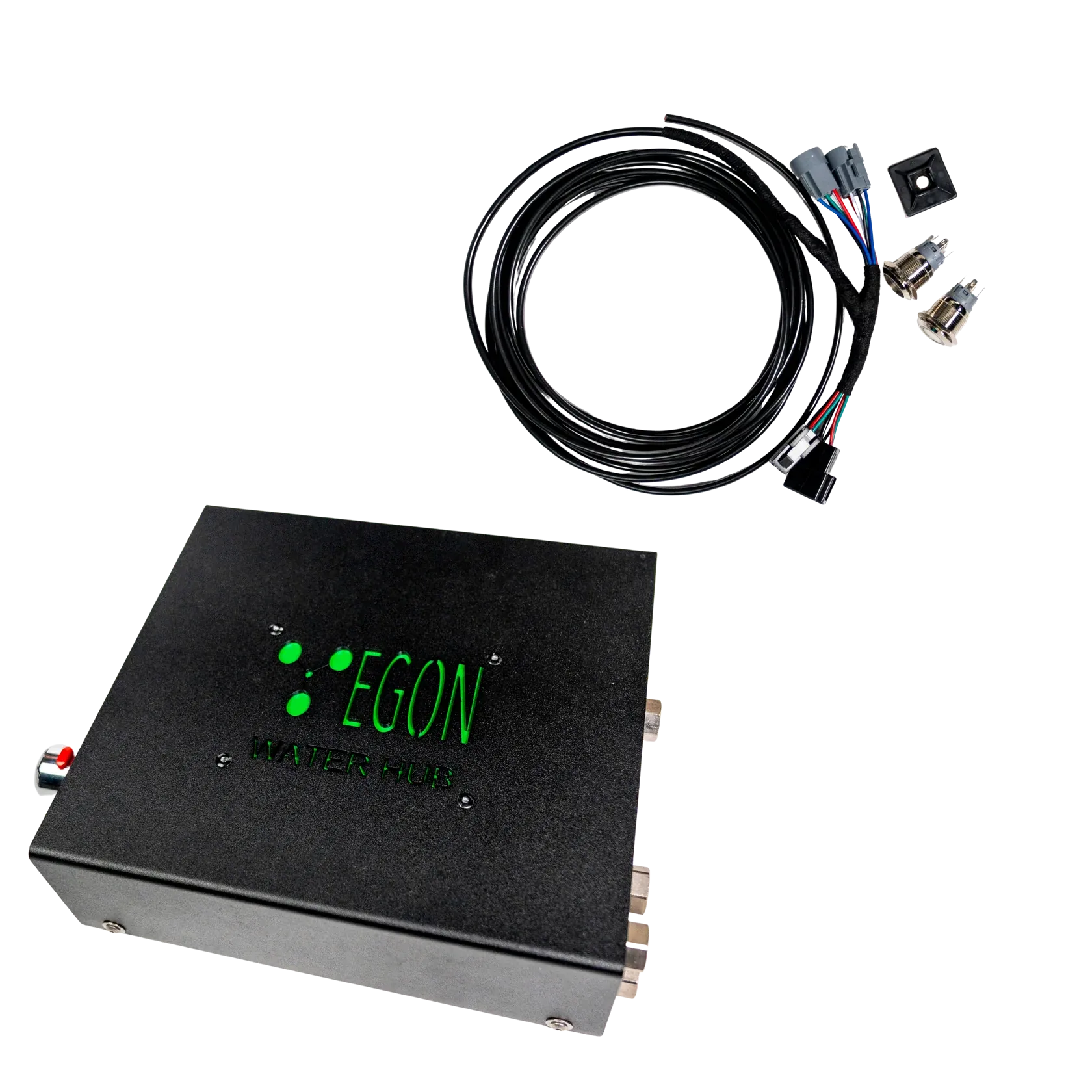

Optional: EGON Electric Connection Kit (2 × LED switches + 4 m power cable)
Optional: EGON Water-Hub Hose Kit (quick-connect fittings, showerhead hose, drinking water hose, external pickup hose with mesh filter)

Specifications

Inputs

Drinking Water Tank Input (Fresh Water)	x1
External Pickup Input (Grey Water)	x1
Water Heater Cold Supply	x1
Water Heater Hot Return	x1

Outputs

Tap Outlet	Drinking water tank outlet (cold)
Shower Outlet	External pickup + water heater (hot or cold)

Other

Power	Twin 12V pumps (switched supply)
Contamination Protection	One-way valve
Dimensions (Product)	10 × 38 × 30 cm (H × L × W)
Dimensions (Packaged)	12 × 41 × 32 cm (H × L × W)
Warranty	2 years

Installation

This example shows the Water-Hub connected to drinking and non-potable water tanks with an optional hot water system, supplying a shower/dish outlet and a drinking water tap fed only from the drinking water tank.

View Full Installation Guide

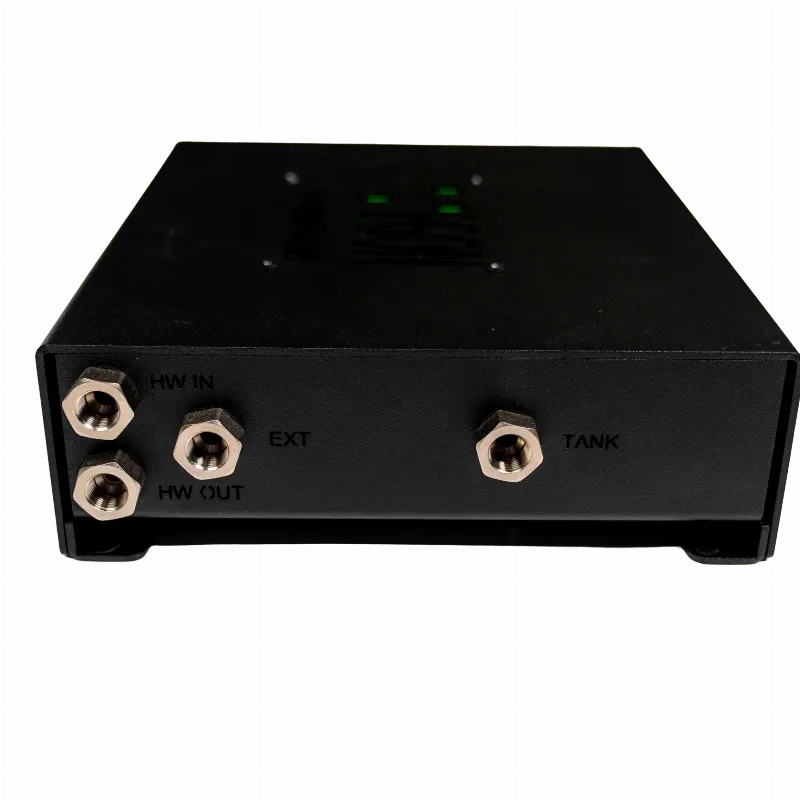

Plumb the two water source inputs: the drinking water tank and the external pickup. Connect the water heater using HW OUT (cold feed) and HW IN (hot return). Attach the outlets: the tap (cold only, from the tank) and the shower (hot or cold via the mixing valve, from the external pickup and heater). Connect a 12V power supply. The hub uses two pumps, each with its own switch, one for the tank and one for the external pickup. Operate the outlets directly via taps. Pumps turn on and off automatically through an inbuilt pressure switch.

The Drink Water or Fresh Water tank feeds both the Tap and the Shower Outlet while the Grey Water tank only feeds the Shower Outlet.

Resources

FAQs

What connections come standard with the Water-Hub?
Each pump includes one male and one female QK Series connector for straightforward connections.

Can I use my own connectors instead of the supplied ones?
Yes, the fitted connectors can be removed and replaced with alternatives of your choice or hardwired.

Does the Water-Hub come with switches?
The base unit does not include switches. The optional Electric Connection Kit provides 2 LED on/off switches with a 4m cable. The switch kit is optional in case you want to do your own wiring with switches that are not located in the hub itself. That way you can run a switched power supply to each pump.

What does the Electric Connection Kit do?
Each switch harness connects to a pump, allowing you to turn each on/off independently.

Is there a Hose Kit available?
Yes, the optional Water-Hub Hose Kit includes:
